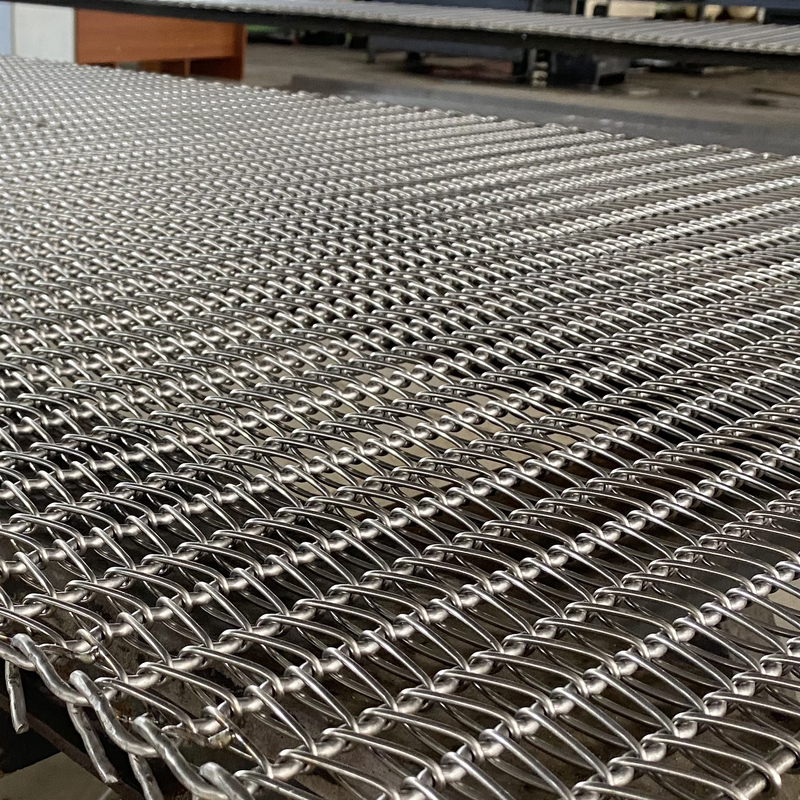

Foam-nickel sintering conveyor belts are a type of continuous conveying component designed specifically for foam-nickel materials during high-temperature sintering, shaping, and atmosphere-controlled processes. Their key feature lies in maintaining structural stability under elevated temperatures while meeting the particular requirements of foam-nickel products regarding flatness, thermal uniformity, and flexible load support. These belts are typically made from high-temperature-resistant and corrosion-resistant soft metal wire materials, with AISI 314 stainless steel being commonly used. This material maintains stable performance under high-temperature oxidation and various furnace atmospheres, making it less prone to embrittlement, elongation, or surface degradation, which helps enhance the overall reliability of the sintering process.To accommodate the lightweight and easily deformable characteristics of foam-nickel materials, the conveyor belt generally adopts a balanced-weave structure combined with crimped connecting rods produced through a crankshaft embossing method. This ensures accurate positioning between each spiral wire and cross rod, reducing possible tracking deviation and surface fluctuation during conveying. Such a weave helps achieve a more uniform stress distribution during thermal expansion, providing a stable support interface for foam-nickel products throughout heating, soaking, and cooling stages. The edge structure can be selected as either a crimped-loop hooked edge or a welded edge, depending on equipment requirements. The crimped-hook design features flattened crankshaft joints that reinforce the edge while preventing damage to furnace support rollers, and also allow easier disassembly and replacement. The welded edge offers higher structural rigidity and is suitable for continuous sintering lines with greater tension demands.
The stainless steel-based sintering furnace mesh belt is a high-performance conveyor belt specifically designed for high-temperature sintering process...
The automotive parts sintering furnace mesh belt employs a balanced weaving method with hooked edges. This design provides excellent load-bearing capa...
The general-purpose component sintering furnace mesh belt is manufactured from high-temperature and corrosion-resistant AISI314 material, maintaining ...
The electronic ceramic components sintering furnace mesh belt is a conveyor solution specifically designed for high-temperature sintering processes. I...
The PLCC controller sintering furnace mesh belt is primarily used for the continuous conveying of integrated packaging components during high-temperat...
The PV cell drying oven mesh belt is a heat-resistant conveyor component specifically designed for continuous transport of photovoltaic cells during d...
The automotive parts forging furnace mesh belt is a specialized high-temperature conveyor designed for the reliable transport of various automotive co...
The construction machinery parts forging furnace mesh belt is designed with high-temperature operating conditions as its primary focus. It is manufact...
The bearing tempering furnace mesh belt utilizes carefully selected heat-resistant steel grades to ensure stable microstructure and mechanical propert...
The aluminum brazing furnace mesh belt plays a crucial role in the entire brazing process of water-cooled plates, serving multiple functions including...
