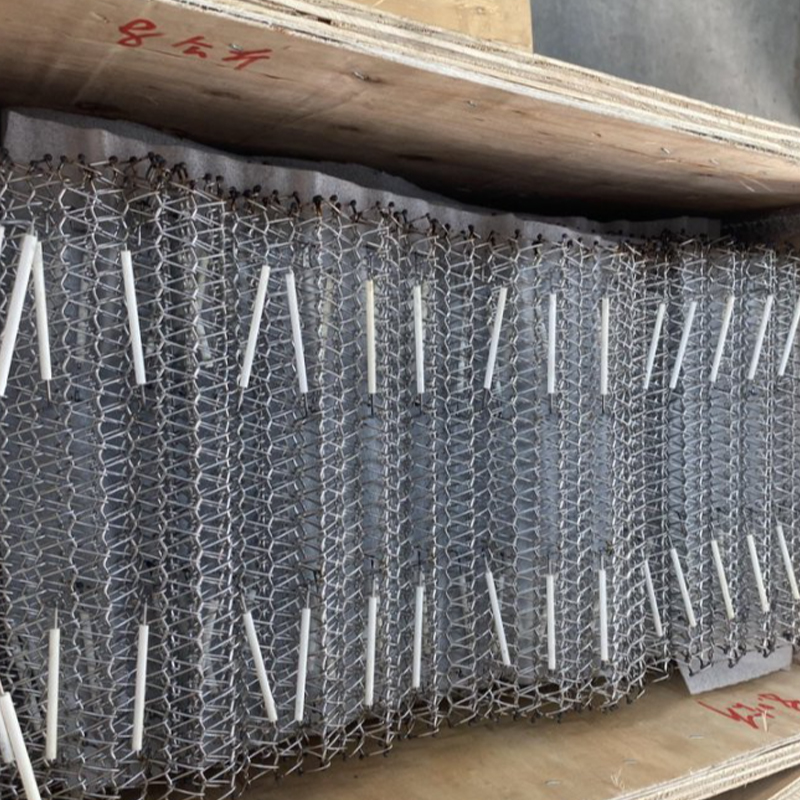

The photovoltaic cell sintering furnace mesh belt is a type of heat-resistant conveying component specifically used for the continuous transport of solar cells during high-temperature sintering, curing, and metallization processes. Its design focuses on ensuring uniform heating of the cells in high-temperature zones, maintaining stable positioning, and achieving an accurate conveying path. This mesh belt is primarily made from flexible metal wires suitable for high-temperature and corrosive atmospheres, with commonly used materials including AISI 314 and Cr20Ni80. These heat-resistant alloys maintain strong mechanical performance and oxidation resistance under continuous heating and thermal cycling, reducing risks such as metal fatigue, elongation, or surface oxidation. As a result, the mesh belt can retain reliable conveying performance even during long-term operation.To meet the high precision requirements of photovoltaic cell positioning, the mesh belt adopts a balanced weave structure combined with a crimped cross-rod embossing process, ensuring tighter coordination between spiral rods and cross wires. This design minimizes lateral deviation caused by thermal expansion and enhances overall flatness. The welded positioning pins on the belt surface are another key feature of this structure. These pins undergo titanium-coating treatment to enhance wear resistance and corrosion resistance. During production, the pins are arranged according to cell dimensions and furnace transport pitch, and are accurately welded to the mesh belt using TIG welding. This ensures that each solar cell remains stably positioned throughout the sintering process, preventing tilting, slipping, or uneven heating.
The general-purpose component sintering furnace mesh belt is manufactured from high-temperature and corrosion-resistant AISI314 material, maintaining ...
Sintering furnace mesh belts for special ceramic components are a class of heat-resistant conveyor assemblies designed for shaping, densification, and...
Electronic component sintering furnace mesh belts are specialized heat-resistant conveyor structures designed to provide stable transport for electron...
The PV cell drying oven mesh belt is a heat-resistant conveyor component specifically designed for continuous transport of photovoltaic cells during d...
The bearing quenching furnace mesh belt is a high-performance heat-resistant conveyor specifically designed for the stable transport of various types ...
The rail transit components forging furnace mesh belt is manufactured using imported AISI 314 or 310S stainless steel, enabling the belt to maintain s...
The fastener tempering furnace mesh belt is made of imported 321 or 304 stainless steel, ensuring a stable metallographic structure during both cyclic...
The steel material products normalizing furnace mesh belt is made of imported AISI 314 or 310S high-nickel stainless steel, possessing excellent high-...
The metal tool normalizing furnace mesh belt is made of imported AISI 314 or 310S high-nickel stainless steel, possessing excellent high-temperature r...
Brazing furnace mesh belts are conveyor components specifically designed for continuous brazing equipment. Their structure and material selection dire...
