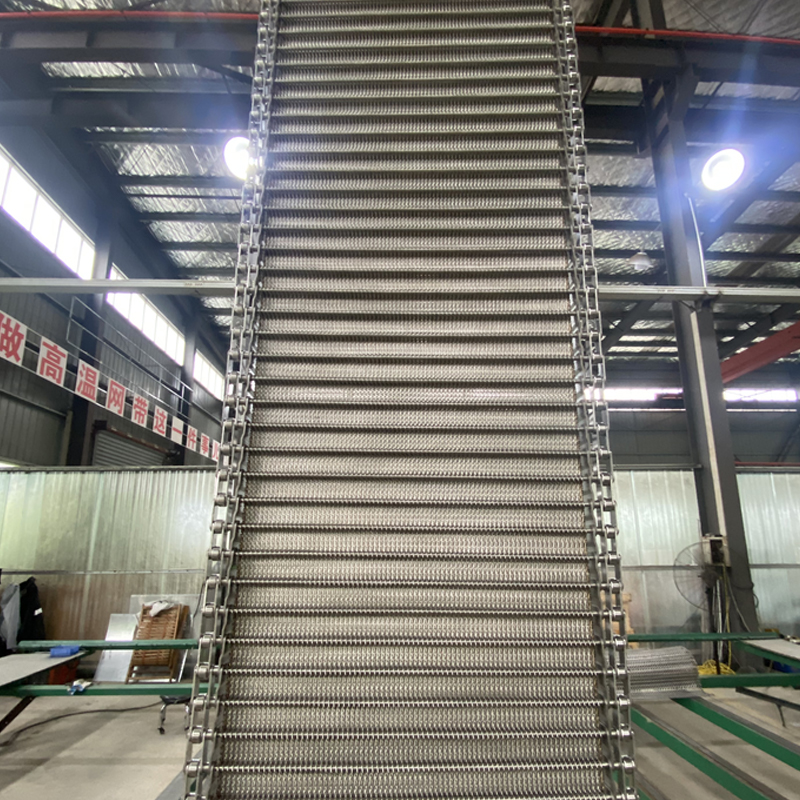

Spring tempering furnace mesh belt

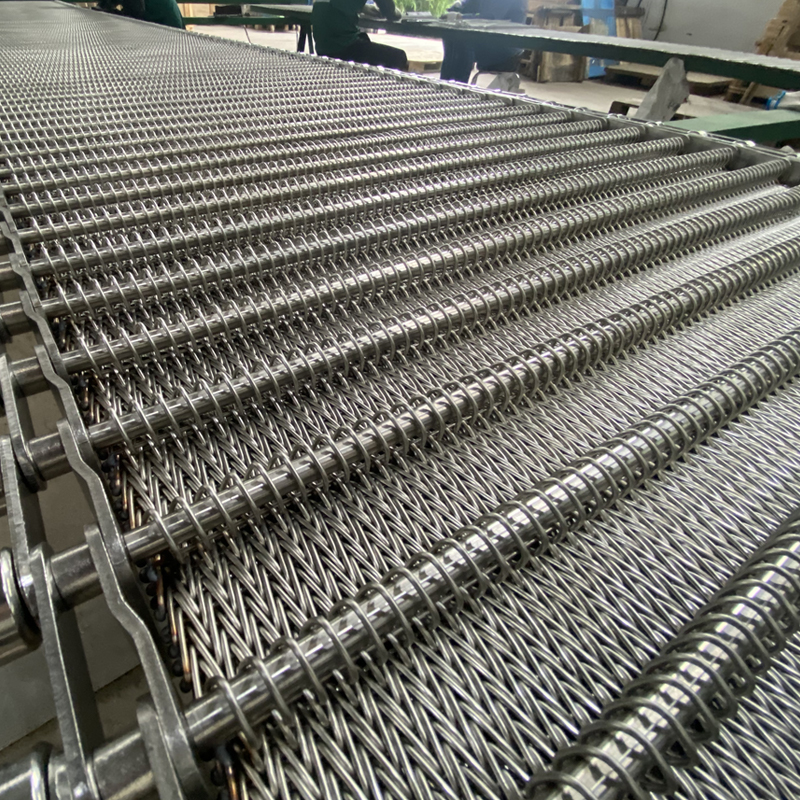

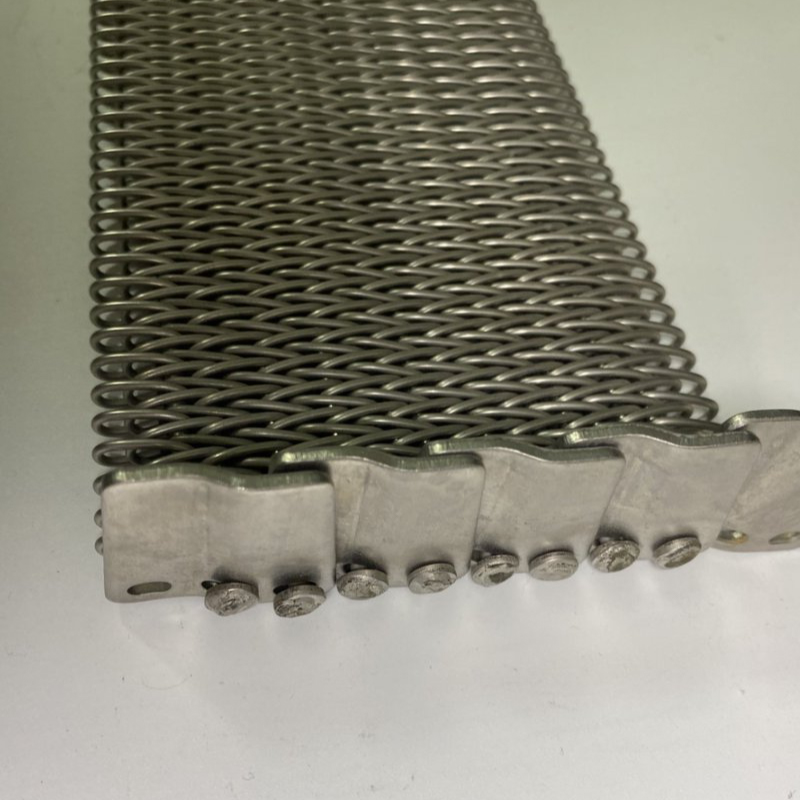

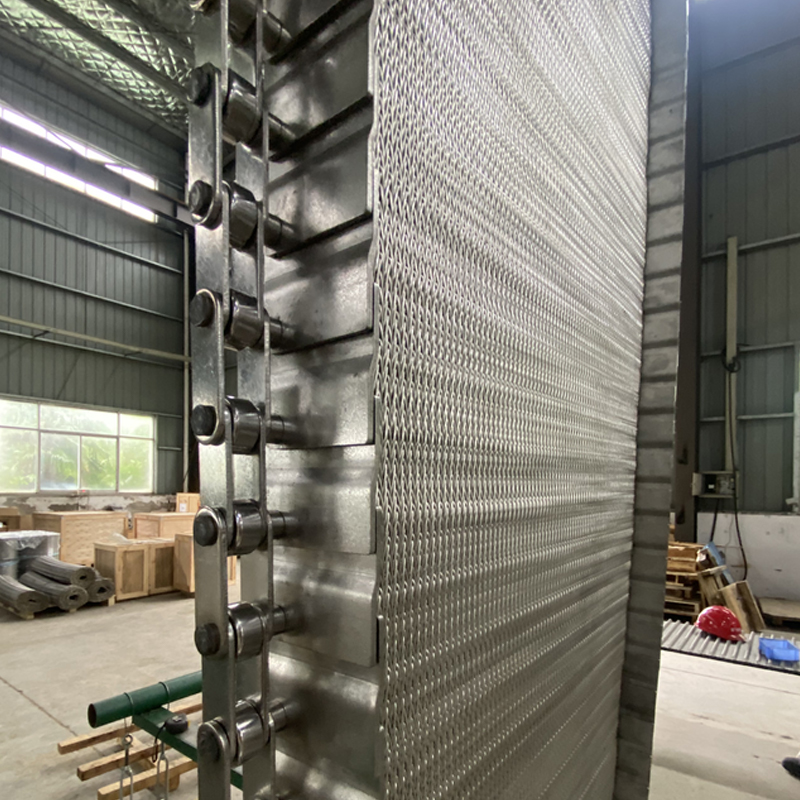

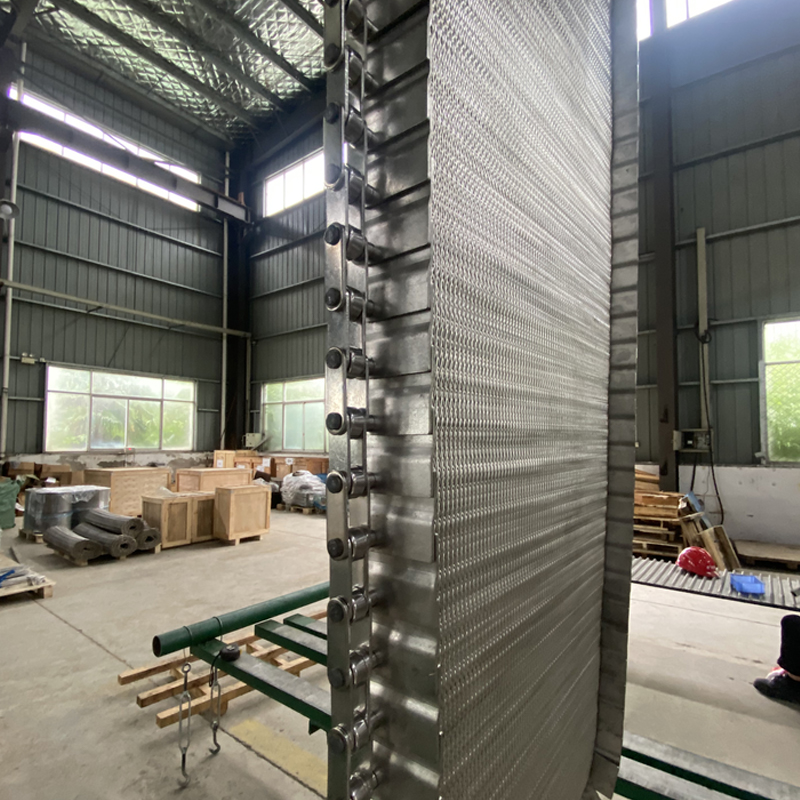

The spring tempering furnace mesh belt is made of imported 321 or 304 stainless steel, exhibiting stable heat resistance and excellent corrosion resistance during the high-temperature tempering stage. Both materials maintain structural strength during repeated heating and cooling, are not prone to oxidation or deformation, and are suitable for spring-type workpieces requiring high dimensional stability. To meet the load-bearing and heat conduction requirements during tempering transport, the mesh belt body adopts a herringbone weave. By strictly controlling the pitch, thread pitch, and overall thickness, the mesh belt structure is made more compact, thereby improving uniform stress distribution during operation, reducing fatigue damage caused by localized stress concentration, and extending the service life of the mesh belt in high-temperature zones.Regarding edge design, different reinforcement structures can be selected according to the spring specifications and loading method, including direct welding edges, folded edges, or the addition of baffles, to enhance edge stability and reduce potential deviation and rolling during transport. For certain tempering equipment requiring guiding structures, a herringbone weave with matching chain-link edges can also be used to ensure smooth operation of the mesh belt in the furnace tunnel. The spring tempering furnace mesh belt can provide stable conveying support in high-temperature, continuous operation environments, and can be customized according to user drawings or specific process requirements to meet the requirements of different spring processing production lines for temperature resistance, load-bearing capacity and service life.
